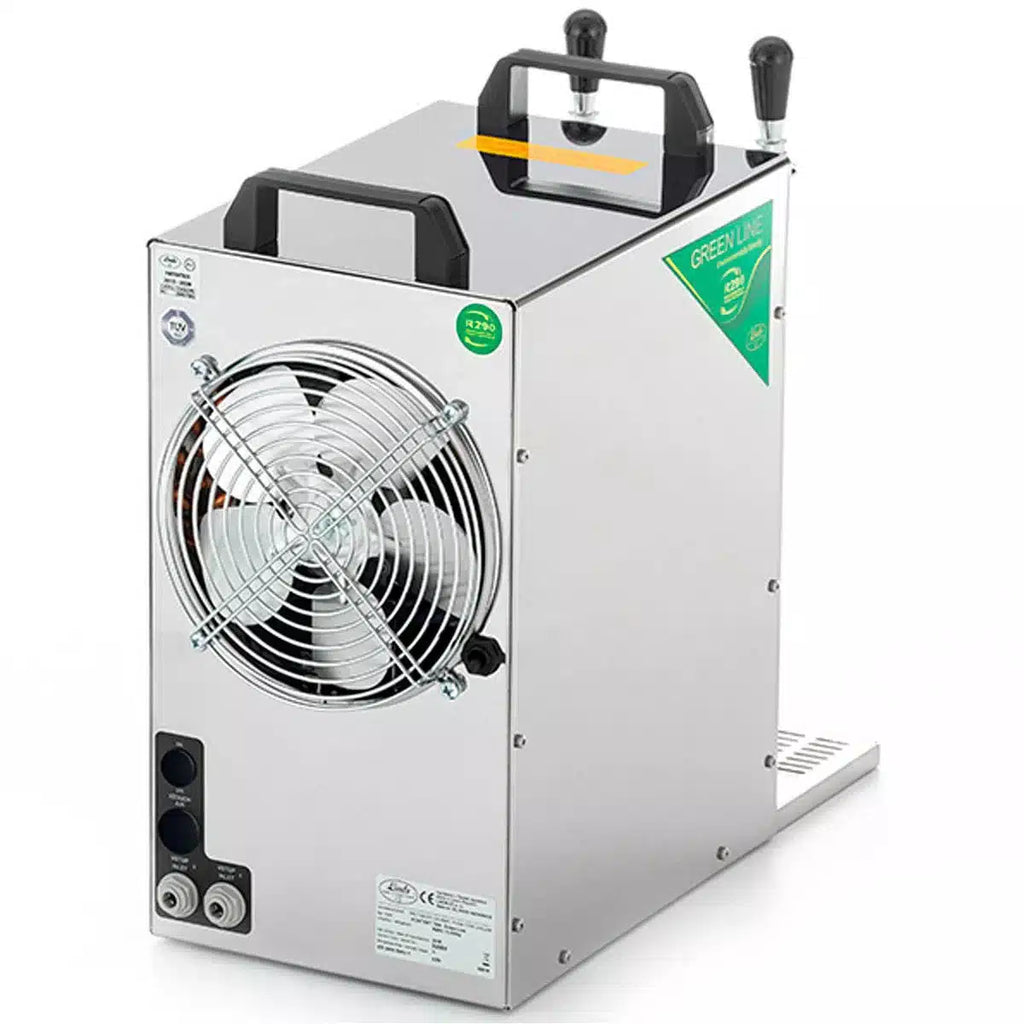

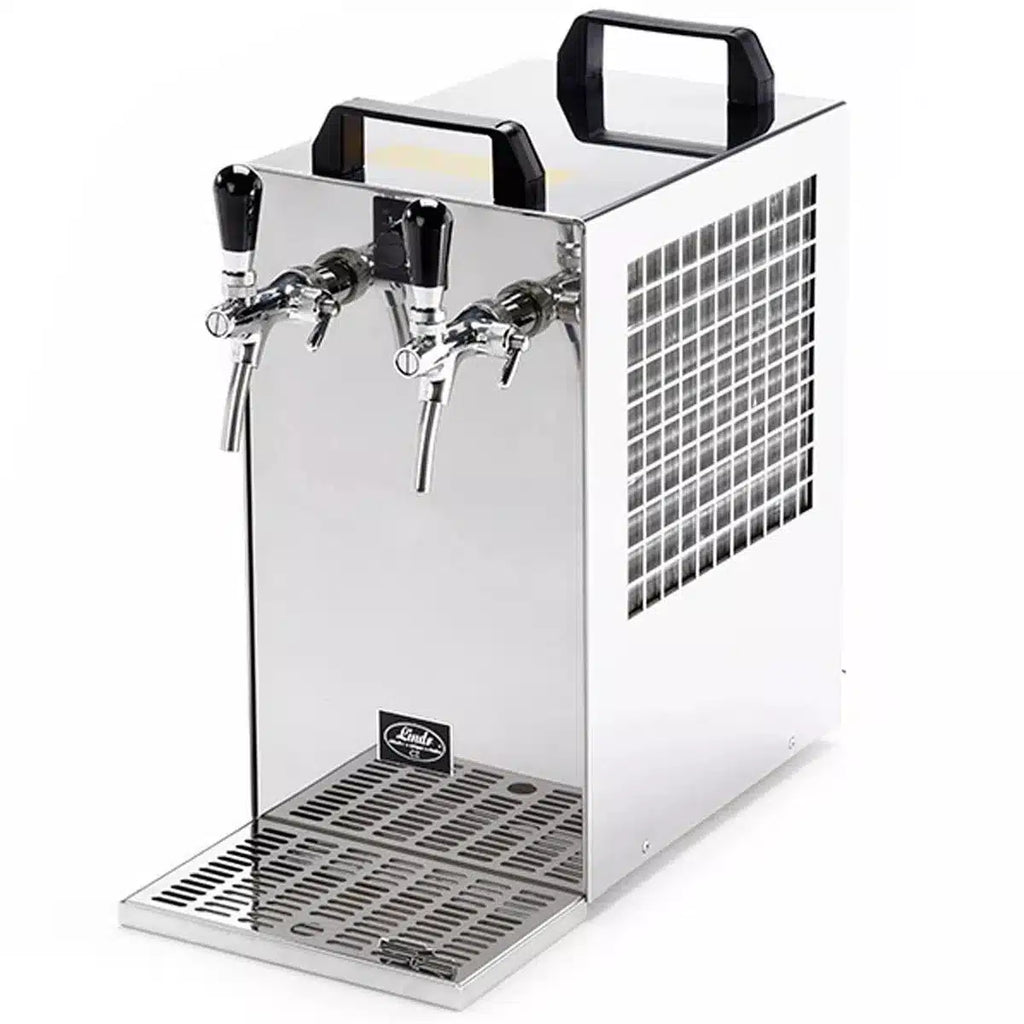

Lindr Kontakt 70 portable two-tap dispenser
The Lindr Kontakt 70 is a professional portable dry cooler with 2 taps, 70 l/h continuous output and 90 l/h maximum capacity. It is designed for beer and other compatible cold beverages in events, temporary bars, catering and light hospitality.
This model does not include an integrated air compressor. It requires compatible keg coupler(s), keg(s), beverage lines and an external pressure source such as CO₂ or a suitable external air compressor.
Main features
- 2 taps for 2 independent cold beverages.
- 70 l/h continuous output and 90 l/h maximum.
- Two 14 m stainless-steel cooling coils.
- 1.2 l of beverage in the thermal block.

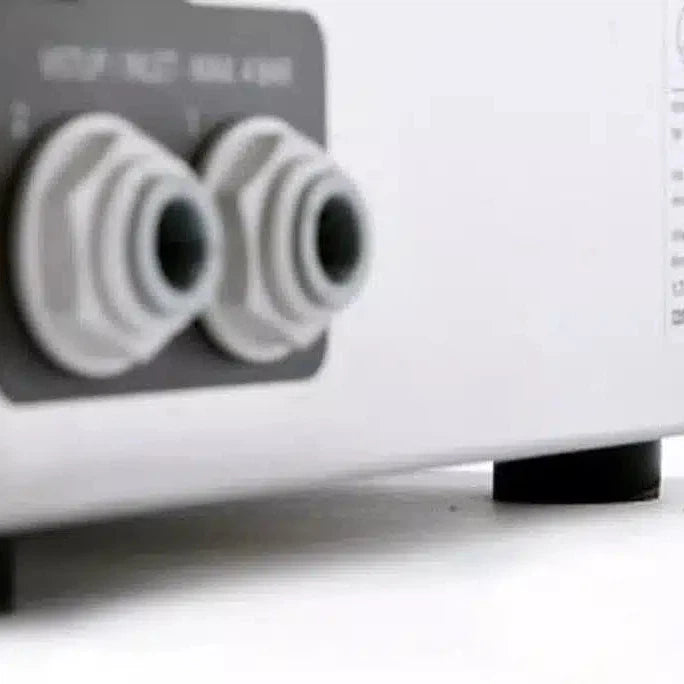

- Beverage connection Speedfit 9.5 mm (3/8").

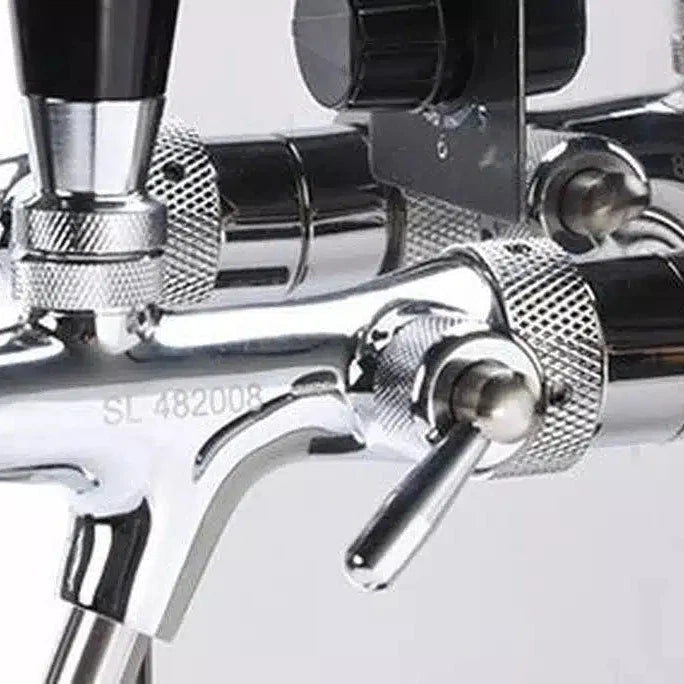

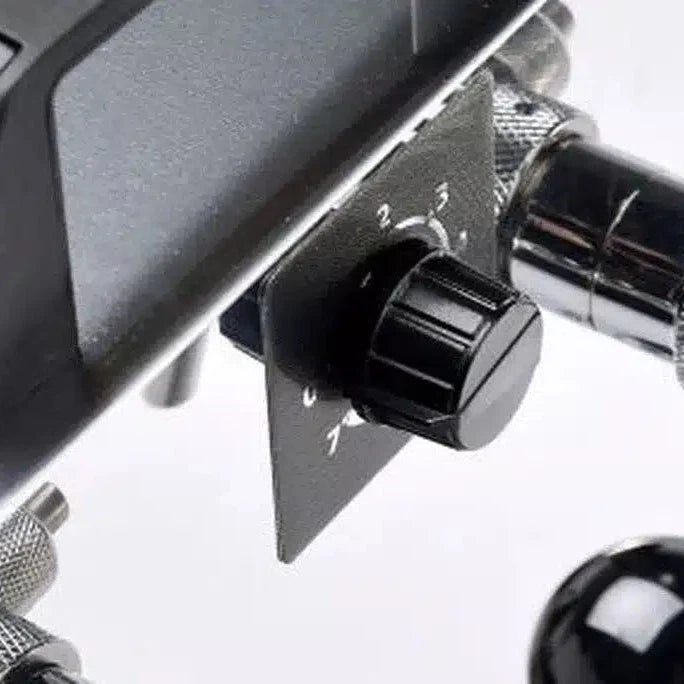

- Continuously adjustable thermostat and compensator taps.
- Stainless-steel construction with R290 Green Line refrigerant.
- Can be configured with 1 or 2 kegs and combined with a dispense tower after checking the complete installation.

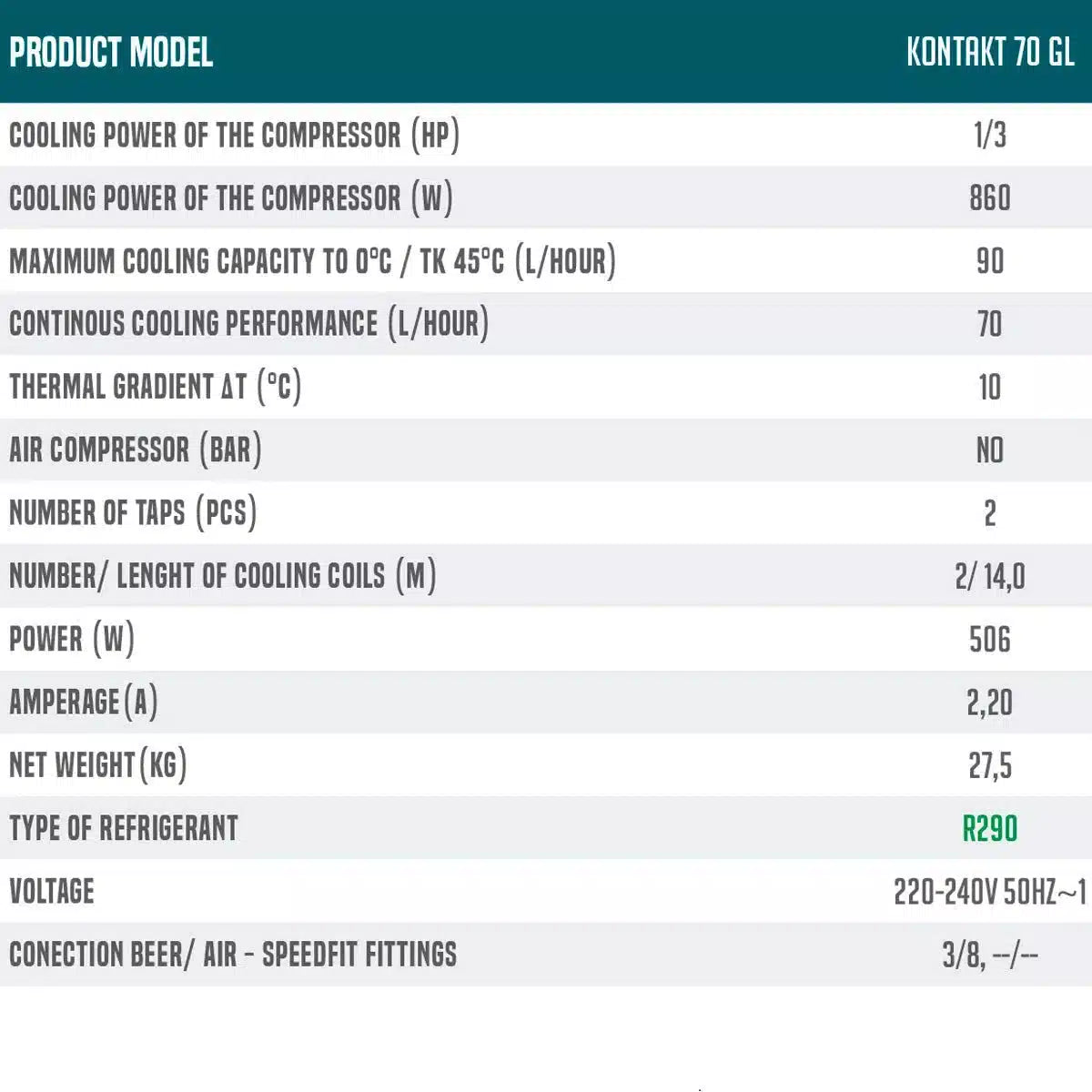

Technical specifications
| Brand / model | Lindr · KONTAKT 70 NEW GREEN LINE |
|---|
| SKU / MPN | PK0169 · KCH 01629 |
|---|
| Taps / cold beverages | 2 / 2 |
|---|
| Maximum / continuous output | 90 l/h / 70 l/h |
|---|
| Temperature gradient ΔT | 10 °C |
|---|
| Compressor rating | 1/3 HP · 860 W |
|---|
| Electrical power / current | 483 W · 2.10 A |
|---|
| Power supply | 220-240V 50Hz~1 |
|---|
| Integrated air compressor | No |
|---|
| Cooling coils | 2 × 14.0 m · 7 × 8 mm |
|---|
| Beverage volume in thermal block | 1.2 l |
|---|
| Beverage connection | Speedfit 9.5 mm (3/8") |
|---|
| Air connection | Not integrated in the base unit |
|---|

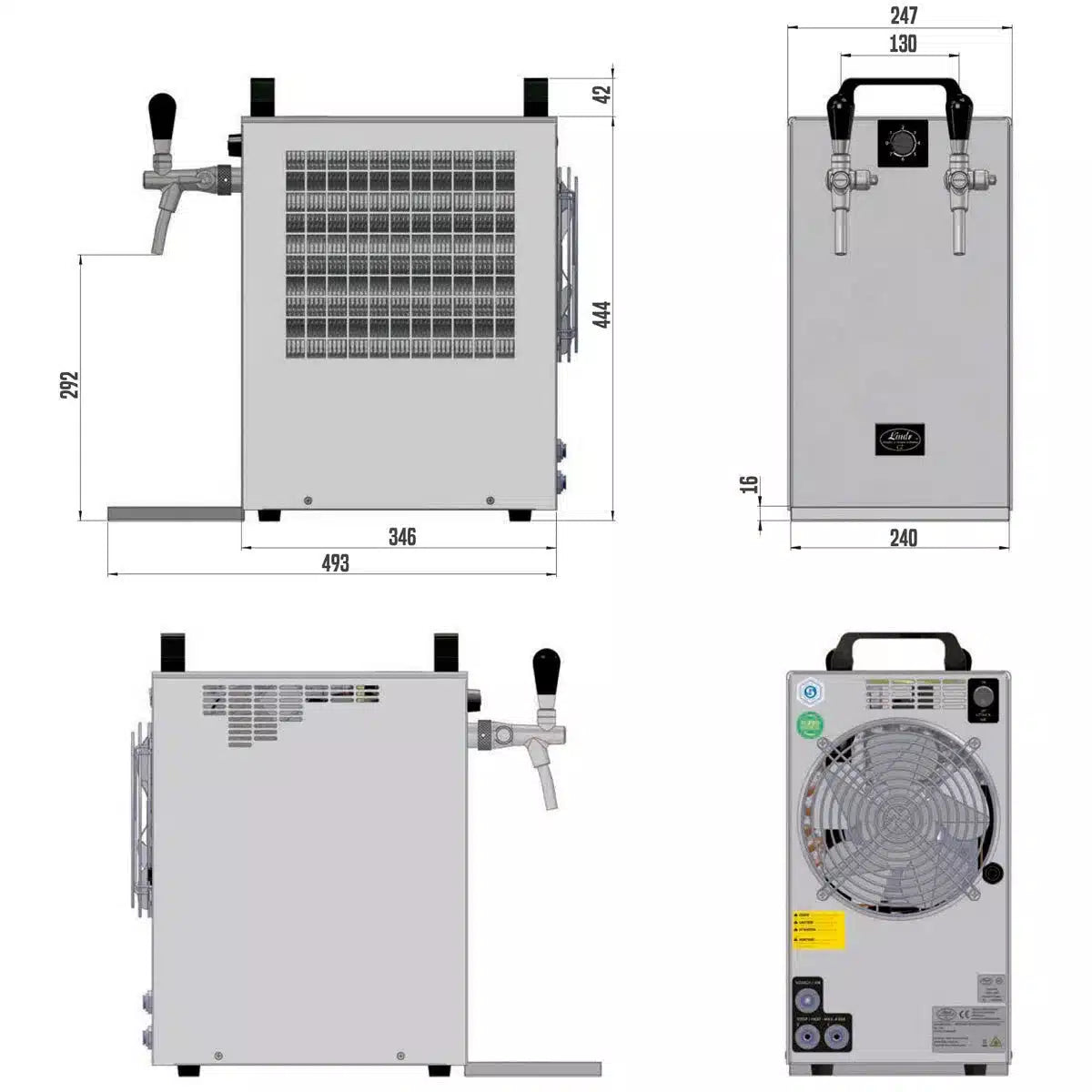

| Approximate dimensions | 493 × 240 × 444 mm |
|---|
| Net weight | 27.0 kg |
|---|
| Materials | Stainless-steel structure and coils |
|---|
| Refrigerant | R290 |
|---|
| Standard supply | Thermostat, taps, tap wrench, drip tray and Speedfit fittings. Install Beer also includes 4 m of beer tubing (2 + 2) and the necessary John Guest connectors. |
|---|
| General compatibility | 3/8" beverage line, compatible keg coupler(s) and external pressure via CO₂ or a compatible external air compressor |
|---|
| Certification / standards | The manufacturer states compliance with current Czech and European safety and hygiene standards. |
|---|
Installation and use
- Decide whether the system will use 1 or 2 kegs and select the correct coupler for each.
- Provide compatible external pressure; this model has no built-in air compressor.
- Check 3/8" tubing, quick fittings and adapters before assembly.
- Use a stable surface, keep ventilation clear and provide a safe 220-240V 50Hz~1 electrical supply.
- Install Beer’s quick guide covers one- and two-keg layouts using CO₂ or an external air compressor.
Maintenance
Keep taps, keg couplers, beverage lines and connectors clean. Disconnect electrical power before cleaning or maintenance. Because the unit uses R290, refrigeration-circuit work must follow the manufacturer’s safety instructions and be carried out by qualified personnel when required.
Frequently asked questions
Does it have an integrated air compressor? No. Pressure must be supplied externally.
Can it serve two beverages? Yes. It has two taps and two independent beverage circuits.
Can it work with one or two kegs? Yes, with the corresponding coupler(s), pressure source and installation layout.
How quickly does it cool? Install Beer’s current product information indicates cold beverage in the thermal block approximately 5–8 minutes after switching on.
Downloads

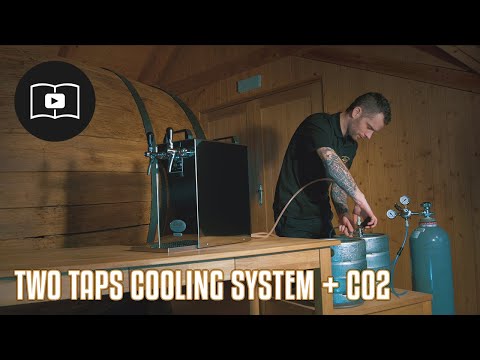

Kontakt 70 product sheet · Lindr manual (Spanish) · Quick connection guide · Connection video
