Kegerator (installation kit)

Kegerator installation kit for fridge draft system

Enjoy the pleasure of a bar at home with the kegerator system. Easily install the mounting kit, serve one or two kegs, and save 60% compared to cans/bottles. Includes premium tap, tubing, and connectors for perfect service of your favorite beer.

The Kegerator is a complete home beer dispensing system (fridge not included). The beer keg is stored in a refrigerated container (fridge) to keep it cold. It allows you to dispense one or two kegs of beer from your own home or venue. Pour beer as if you were in a bar or brewery with the most economical option for dispensing beer from a keg.

Because a keg stores large quantities of beer, the kegerator manages to save more than 60% of the cost of beer compared with the same volume in cans and bottles.

Easy to install and maintain. You can choose a model with one or two beer taps and the required couplers (with 3/8" John Guest quick connector included). A CO2 cylinder or air compressor is required to draw the beer from the keg.

Fridge not included

The pack includes:

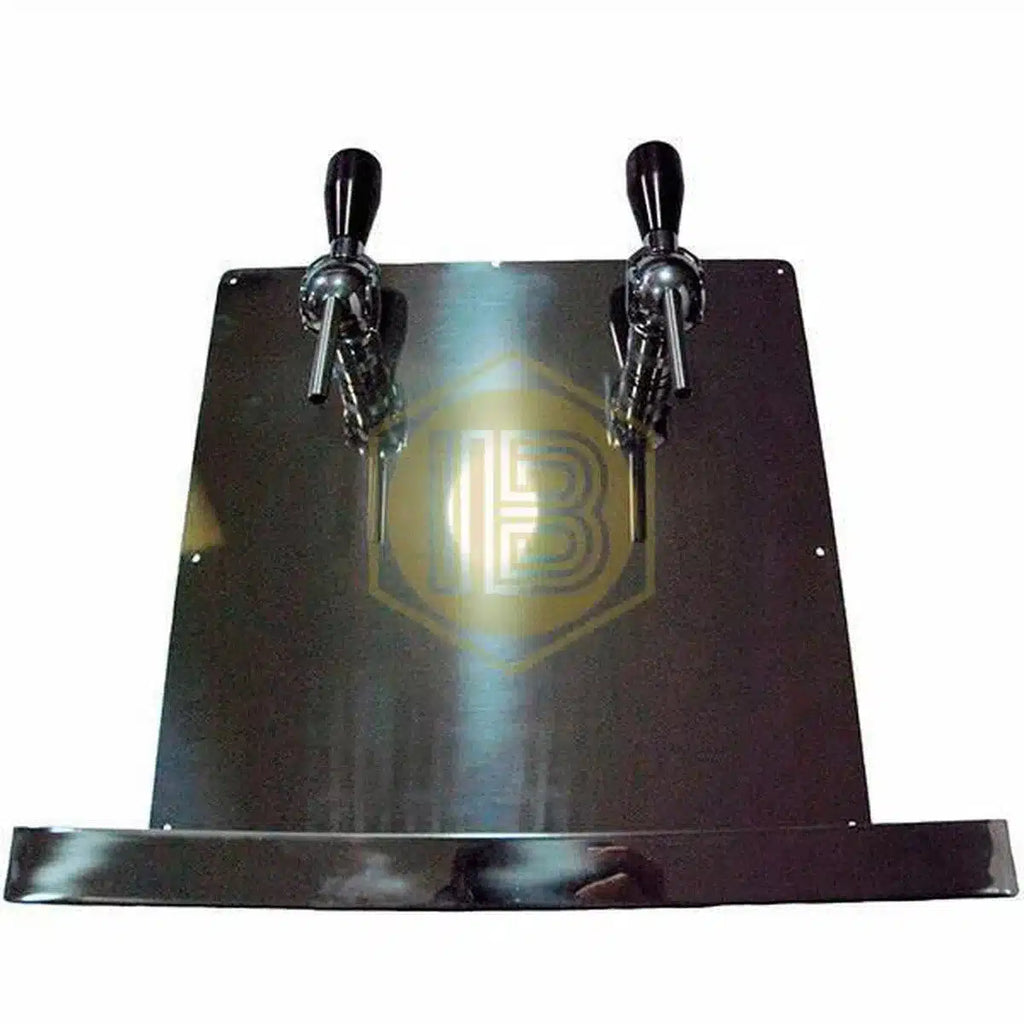

• Stainless steel Kegerator plate
• Drip tray
• Alpha L55 beer tap with compensator JG 3/8" with collar and thread
• Lupulus II 3/8" beer tube (1 m/2 m)
• Poly SK 3/8" air/gas tube (2 m / 3 m)
• John Guest Equal T Connector 3/8" (for gas or air)
• Optional: Beer coupler head with 3/8" John Guest outlet

Kegerator* dimensions:

• 1 Tap: Width 21cm x Height 40cm (hole centered at 33cm height)
• 2 Taps: Width 38 cm x Height 40 cm (holes spaced 18 cm at 33 cm height)
• Tab to hold the 16 cm wide x 10 cm long drip tray
• Single drip tray 21x16x2.5 cm / Double drip tray 36x16x2.5 cm
• 1/2" (22mm) tap hole diameter

*To install the Kegerator, you must drill the desired surface with a 22 mm hole saw. You must also make a 3/8" (10 mm) diameter hole for the external air or CO2 tube.
