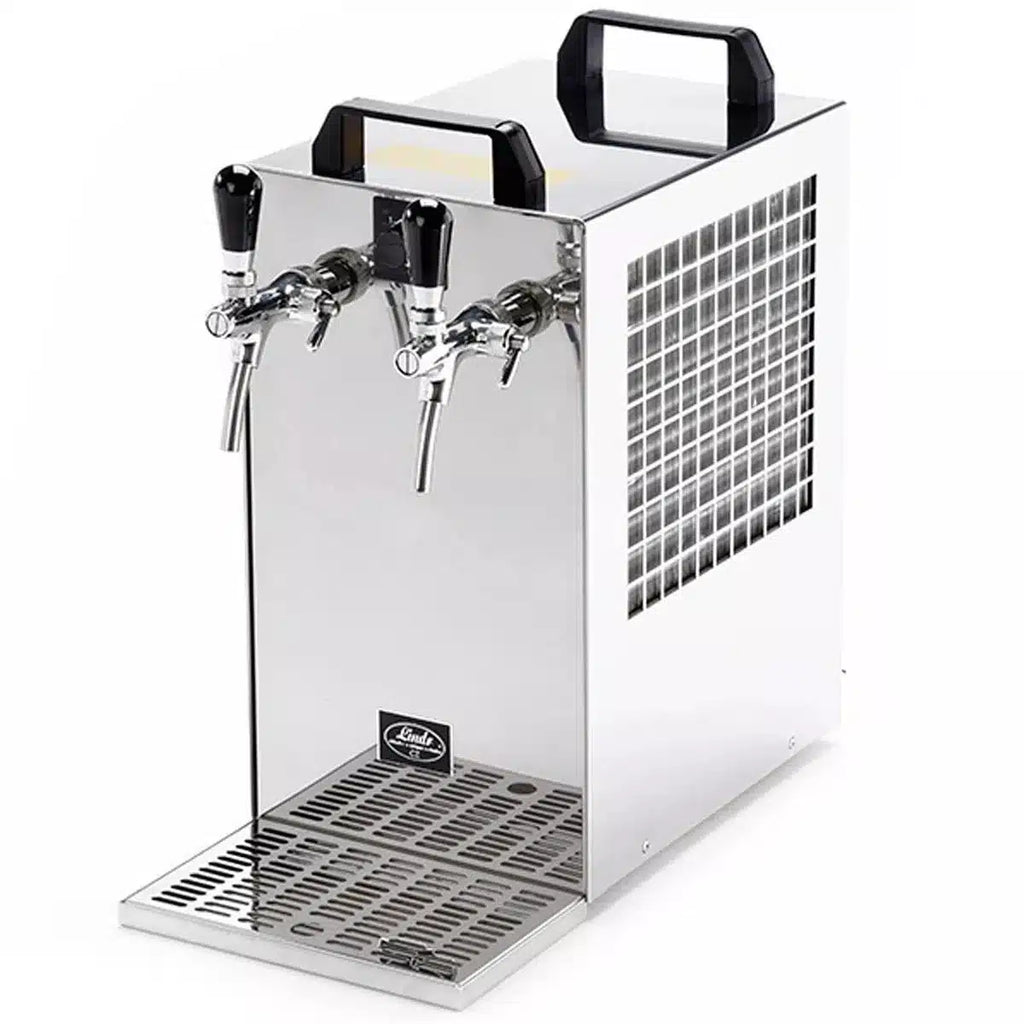

Lindr Kontakt 70/K portable two-tap dispenser with integrated air compressor
The Lindr Kontakt 70/K is a professional portable dry cooler with 2 taps, 70 l/h continuous output, 90 l/h maximum capacity and an integrated air compressor. It is designed for beer and other compatible cold beverages in events, temporary bars, catering and light hospitality.
The integrated compressor operates automatically at 2.8–3.2 bar. Compatible keg coupler(s), suitable keg(s) and correctly sized beverage and air lines are still required.
Main features
- 2 taps for 2 independent cold beverages.
- 70 l/h continuous output and 90 l/h maximum.
- Integrated air compressor with automatic 2.8–3.2 bar pressure and molecular air filter.

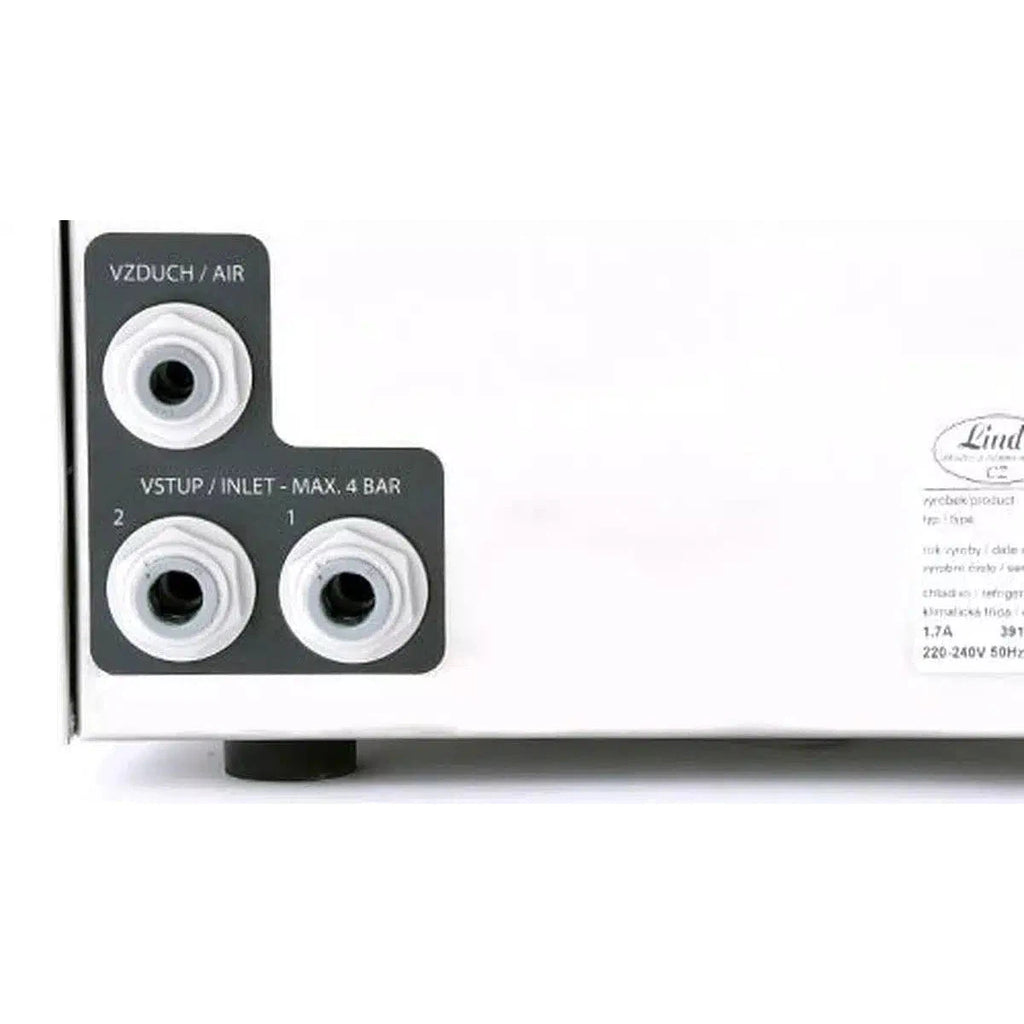

- Beverage connection Speedfit 9.5 mm (3/8") and air connection Speedfit 8 mm (5/16").
- Two stainless-steel cooling coils of 14 m each.
- 1.2 l of beverage in the thermal block.

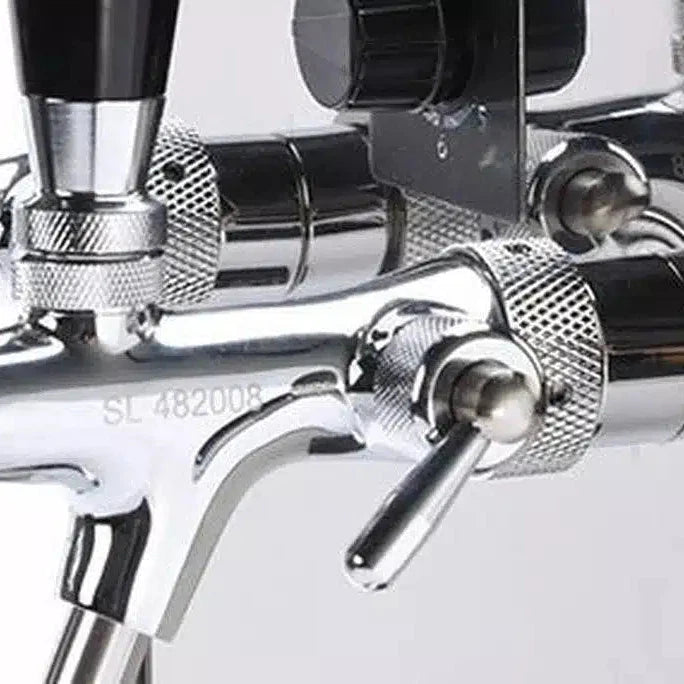

- Compensator taps, stainless-steel construction and R290 Green Line refrigerant.
- Can be configured with 1 or 2 kegs and combined with a dispense tower after checking the installation.

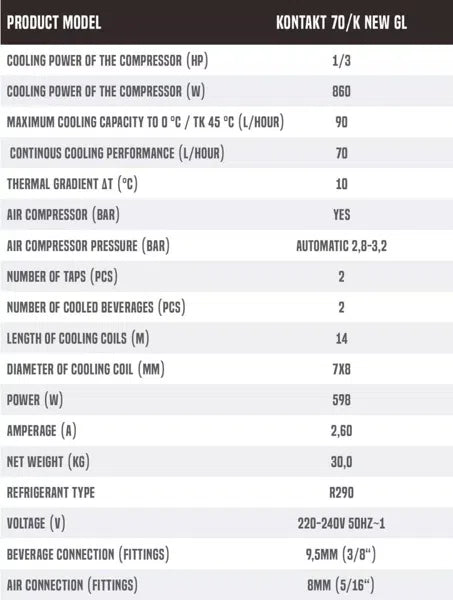

Technical specifications
| Brand / model | Lindr · KONTAKT 70/K NEW GREEN LINE |
|---|
| SKU / MPN | PK0167 · KCH 01630 |
|---|
| Taps / cold beverages | 2 / 2 |
|---|
| Maximum / continuous output | 90 l/h / 70 l/h |
|---|
| Temperature gradient ΔT | 10 °C |
|---|
| Compressor rating | 1/3 HP · 860 W |
|---|
| Electrical power / current | 598 W · 2.60 A |
|---|
| Power supply | 220-240V 50Hz~1 |
|---|
| Integrated air compressor | Yes · automatic 2.8–3.2 bar |
|---|
| Cooling coils | 2 × 14.0 m · 7 × 8 mm |
|---|
| Beverage volume in thermal block | 1.2 l |
|---|
| Beverage connection | Speedfit 9.5 mm (3/8") |
|---|
| Air connection | Speedfit 8 mm (5/16") |
|---|

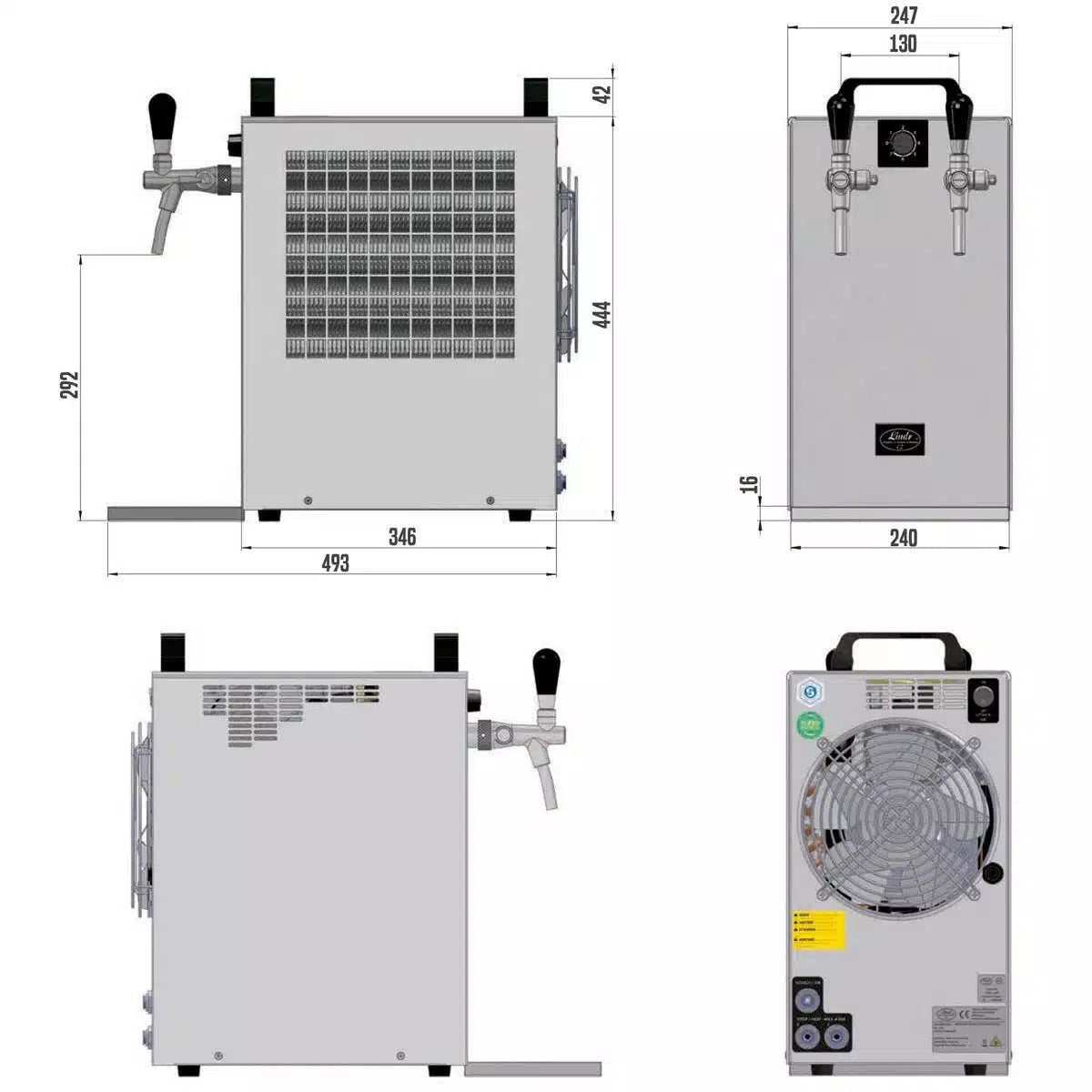

| Approximate dimensions | 493 × 240 × 444 mm |
|---|
| Net weight | 30.0 kg |
|---|
| Materials | Stainless-steel structure and coils |
|---|
| Refrigerant | R290 |
|---|

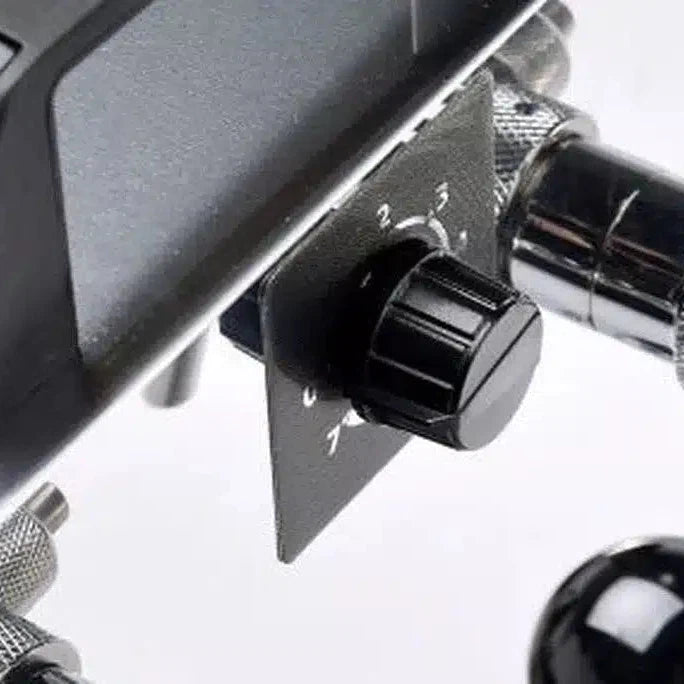

| Standard supply | Thermostat, taps, tap wrench, drip tray and Speedfit fittings. Install Beer also includes 4 m of beer tubing (2 + 2), 4 m of gas/air tubing (2 + 2) and the necessary John Guest connectors. |
|---|
| General compatibility | 3/8" beverage line, 5/16" air line, compatible keg coupler(s) and suitable keg(s)/beverage(s) |
|---|
| Certification / standards | The manufacturer states compliance with current Czech and European safety and hygiene standards. |
|---|
Installation and use
- Decide whether the system will use 1 or 2 kegs and select the correct coupler for each.
- Check the 3/8" beverage and 5/16" air connections and all adapters before assembly.
- The integrated compressor simplifies portable setups; depending on beverage and serving time, CO₂ may still be preferable.
- Use a stable surface, keep ventilation clear and provide a safe 220-240V 50Hz~1 electrical supply.
- Install Beer’s quick guide covers one- and two-keg layouts using the integrated compressor or CO₂.
Maintenance
Keep taps, keg couplers, beverage and air lines and connectors clean. Disconnect electrical power before cleaning or maintenance. Because the unit uses R290, refrigeration-circuit work must follow the manufacturer’s safety instructions and be carried out by qualified personnel when required.
Frequently asked questions
Does it have an integrated air compressor? Yes, with automatic pressure from 2.8 to 3.2 bar.
Can it serve two beverages? Yes. It has two taps and two independent beverage circuits.
Is a CO₂ cylinder required? Not necessarily in the basic configuration; it may still be preferable for some beverages or longer service periods.
How quickly does it cool? Install Beer’s current product information indicates cold beverage in the thermal block approximately 5–8 minutes after switching on.
Downloads
Kontakt 70/K product sheet · Lindr manual (Spanish) · Quick connection guide · Connection video
