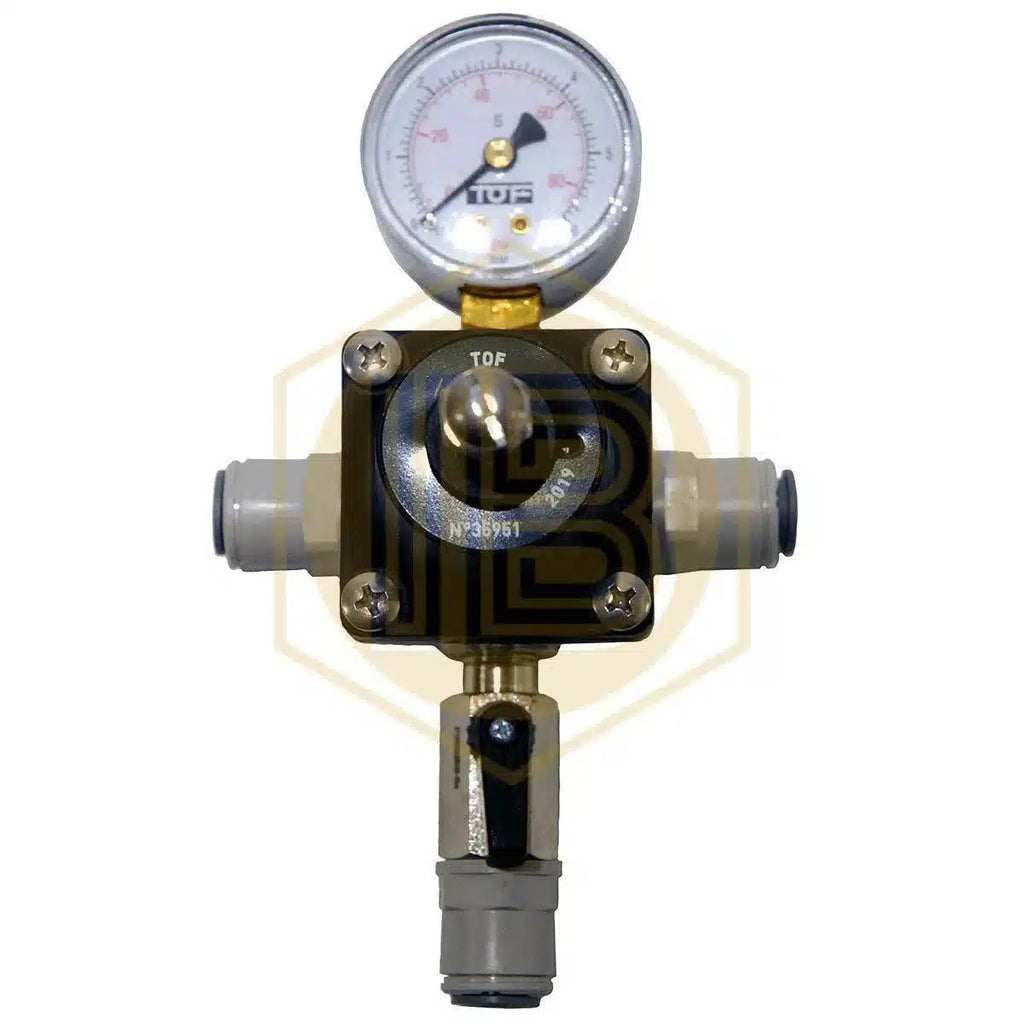

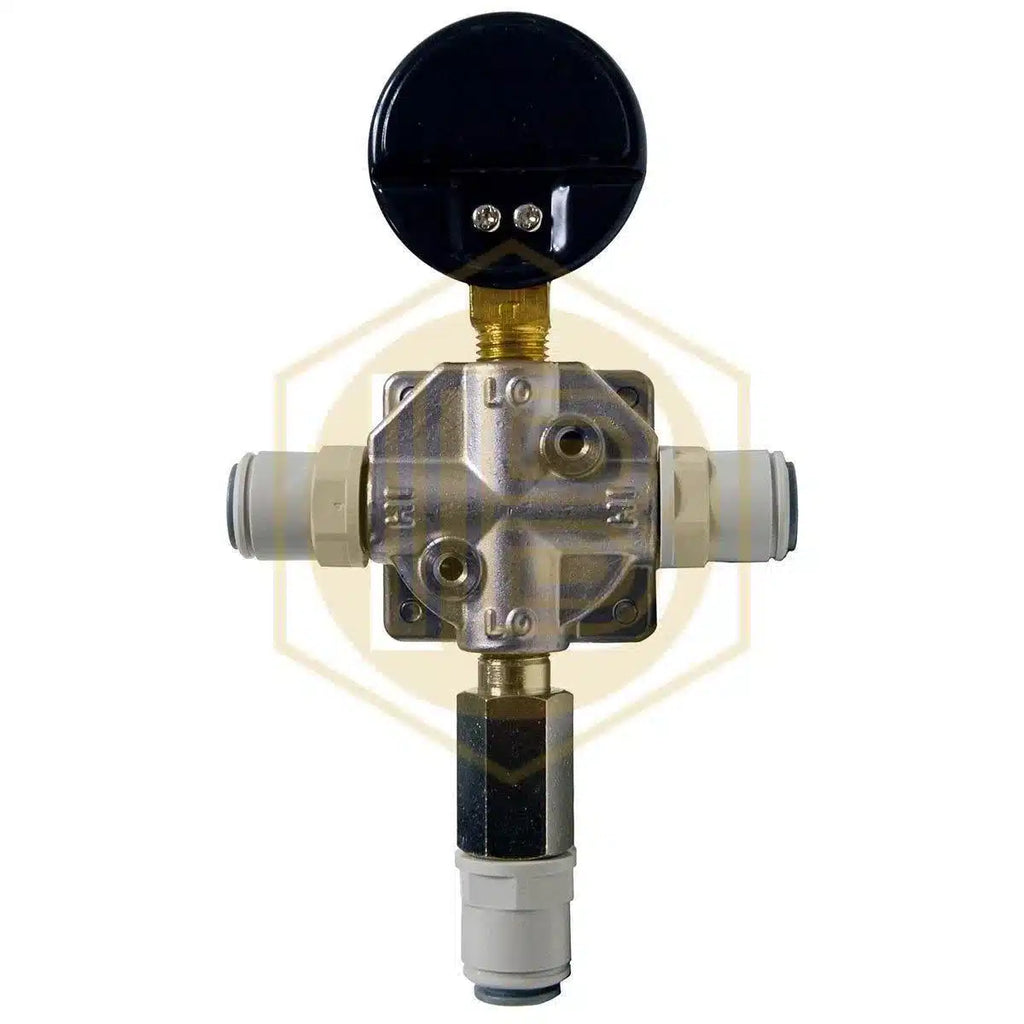

Low-pressure single-body regulator with 3/8" quick connector

Single‑body low‑pressure regulator with quick connection for CO2 gas bottle

Low-pressure regulator for draft beer, with fine adjustment and 3/8" quick-connect fittings. Easy installation, ideal for multi-line dispensing systems in cold rooms. Maintains optimal carbonation, preventing excess foam or flat beer. 0–6 Bar gauge for total dispensing precision.

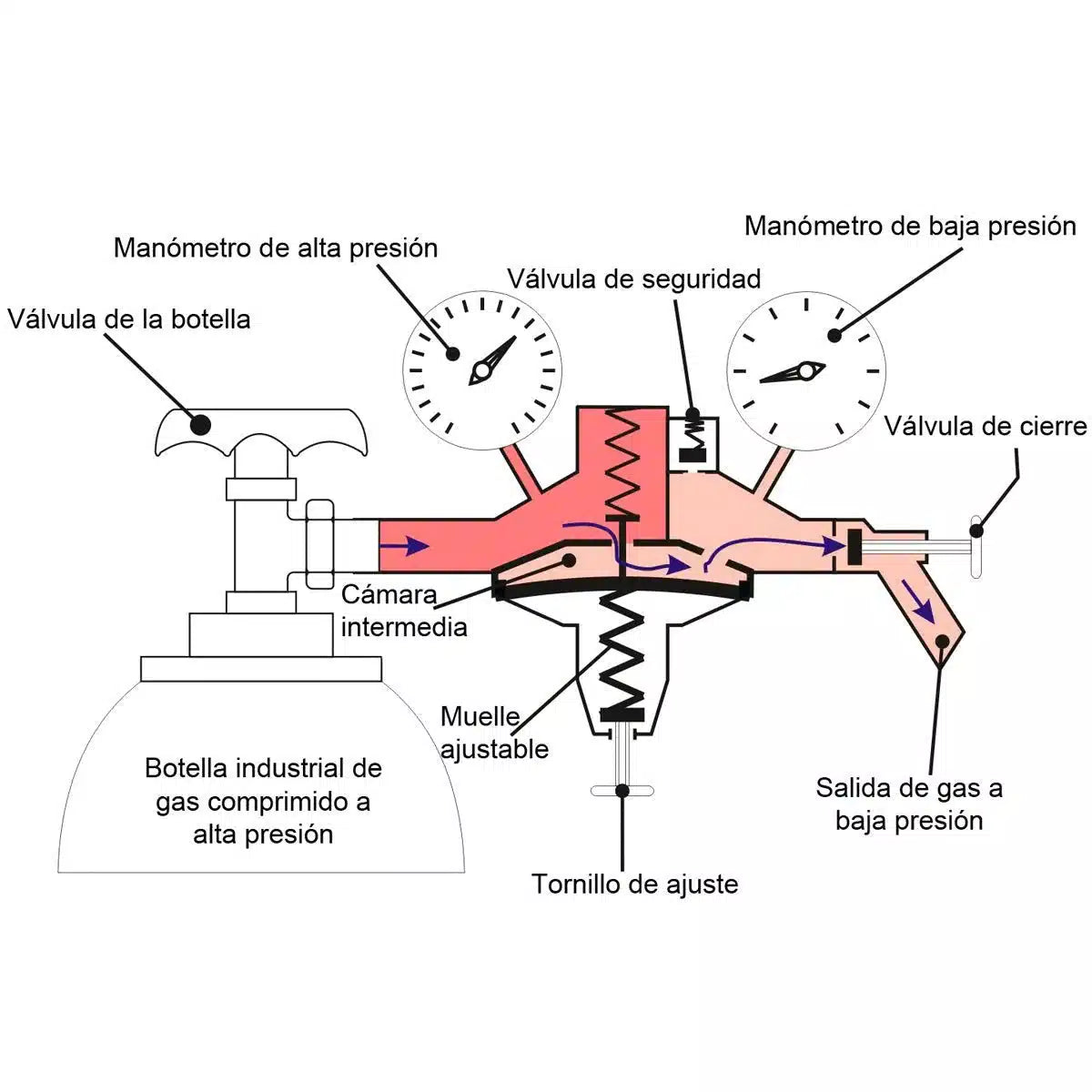

Primary regulator* or low-pressure gauge that regulates the pressure coming from the gas cylinder (high-pressure source) and connects to the beer keg via the keg valve (reduces the pressure). When a pressure is recommended, it is usually specified.

Easy installation in cold‑room panels (store and dispense beer kegs). As many as needed are connected in series to supply the different kegs.

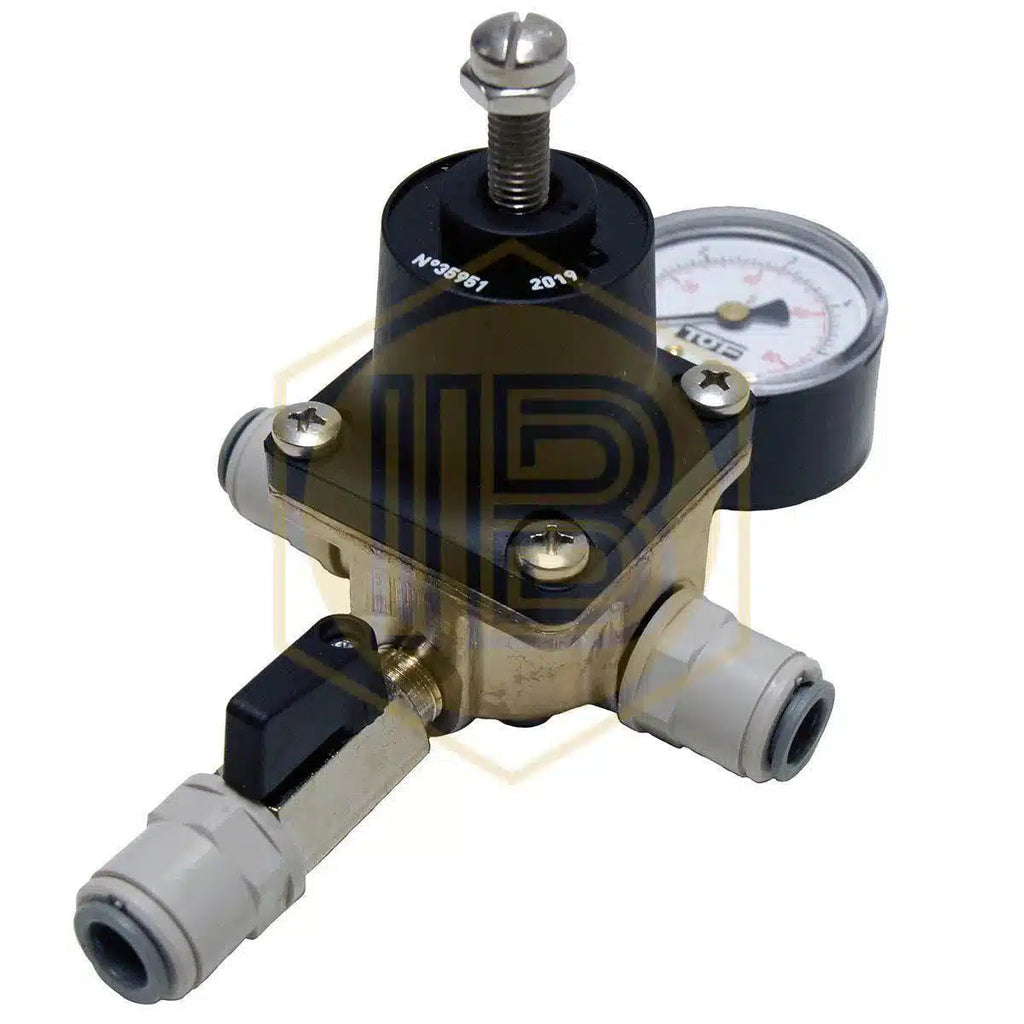

The gas regulator contains a manual adjustment screw or knob to regulate the amount of pressure supplied to the keg.

The gas regulator is vitally important for maintaining the correct CO2 level in beer. Too much CO2 can add excess CO2 to the beer and cause foaming and over-carbonation issues, while too little CO2 pressure can release the CO2 from the beer itself, resulting in flat beer with little or no gas/head.

*A high-pressure regulator connected to a CO2 cylinder is required to feed this low-pressure regulator.

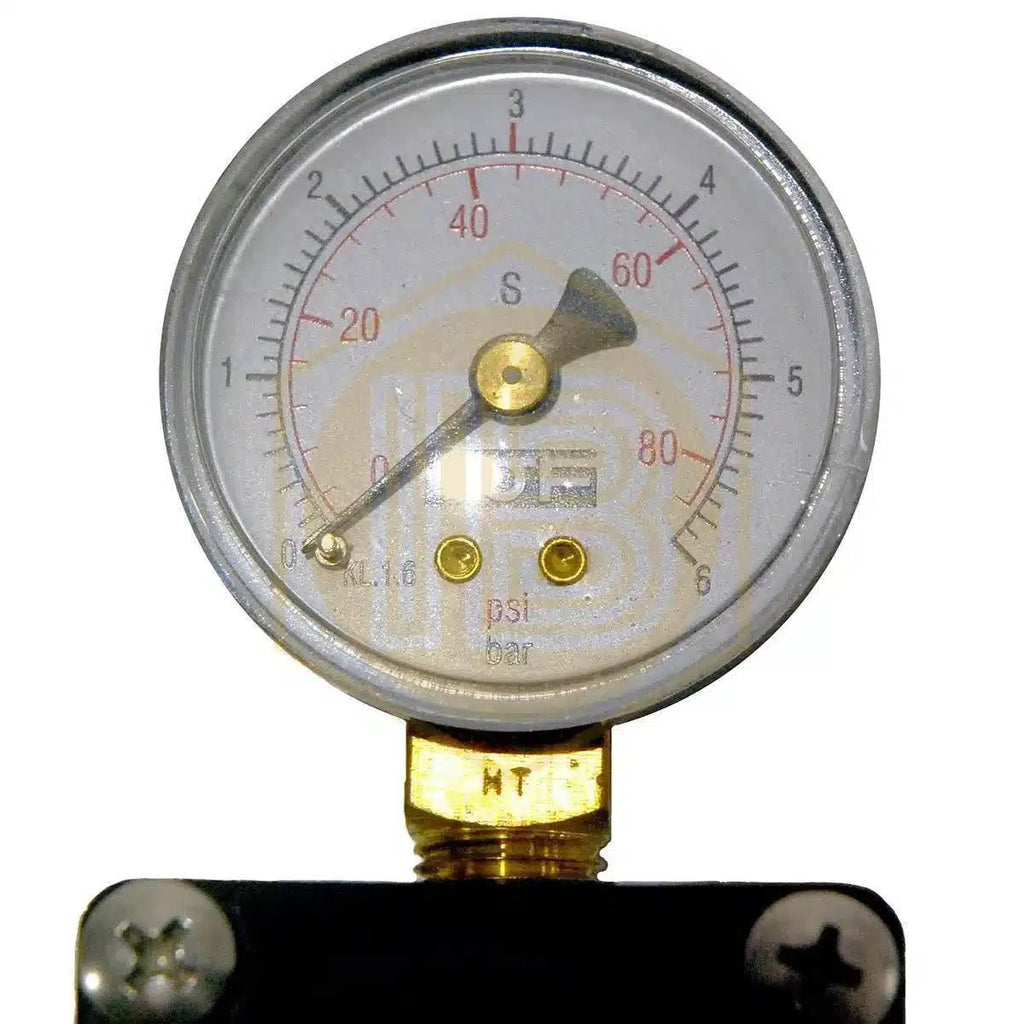

Low-pressure gauge: 0–6 bar

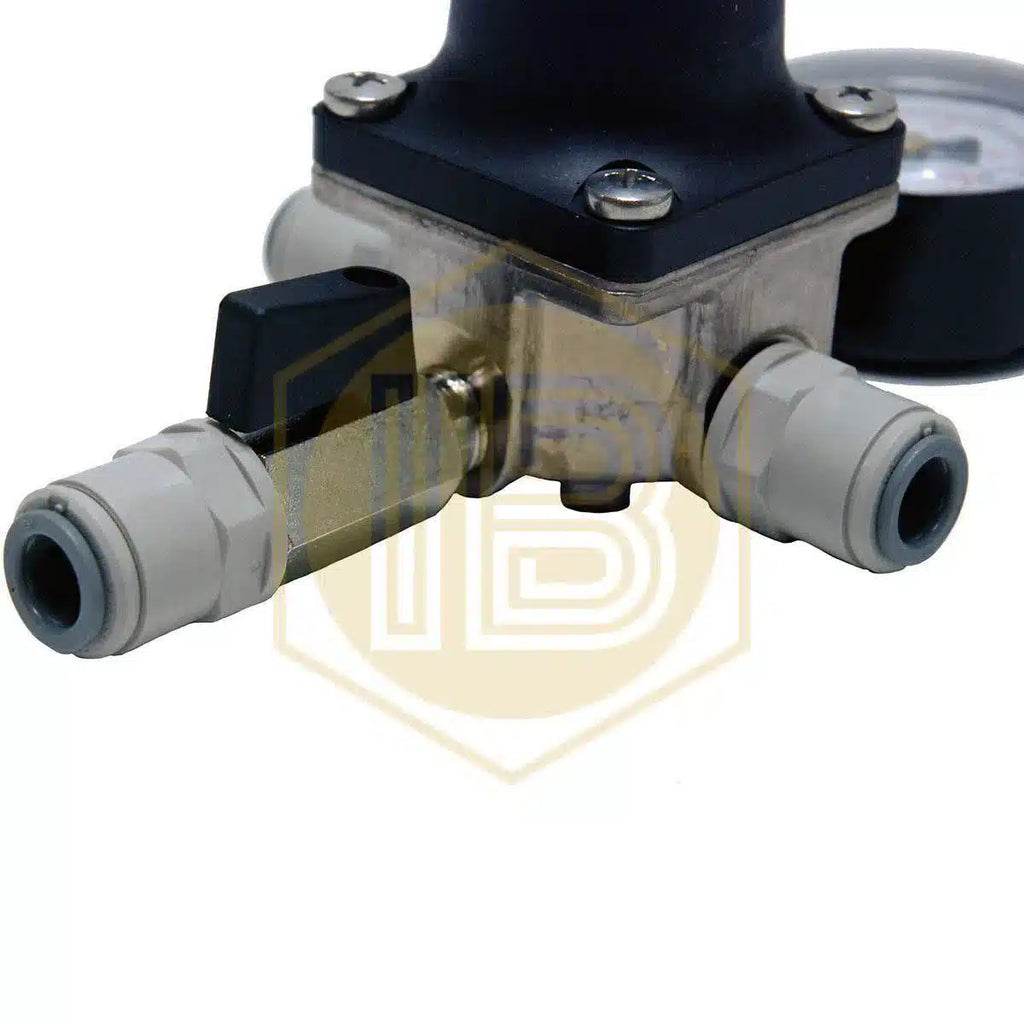

Direct John Guest 3/8" tube connections.
