Válvula Anti-Retorno-Install Beer

Non-Return Valve

3/8"
12.60€ EUR (15.24€ EUR IVA incl.)
Skip directly to product information
Válvula Anti-Retorno-Install Beer

Non-Return Valve

IB0588
12.60€ EUR (15.24€ EUR IVA incl.)

Pickup available at Install Beer S.L.

Usually ready in 4 hours

View store information

Non-Return Valve

3/8"

Install Beer S.L.

Pickup available, usually ready in 4 hours

Carrer de Joaquim Valls 109
Local
08042 Barcelona
B
Spain

+34933464656

Fast and secure shipping

Flexible returns

John Guest connections check valve for tubing

Tube sizes 5/16" (8 mm) and 3/8" (9.5 mm)

The John Guest non-return valve connection is vital in beverage dispensing systems, ensuring quick and secure connections for 5/16" and 3/8" tubes. It offers a leak-tight fit, preventing deformation and flow reduction, and is compatible with a wide range of tubing. Made from food-grade polymers or nickel-plated brass, this valve ensures the quality and hygiene of the dispensed liquid, making it ideal for beer taps and water coolers.

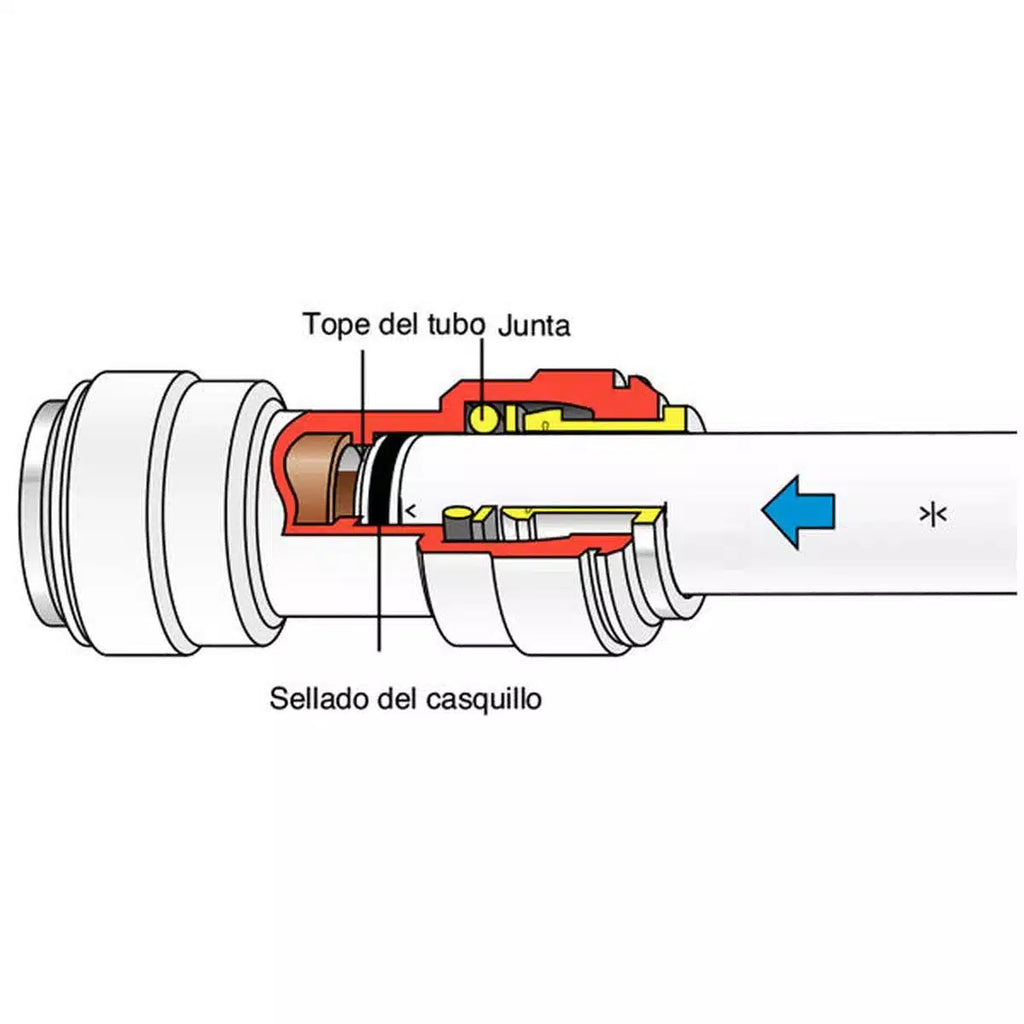

Double-seal push-fit system for use with liquids and gases.

Holds the tube firmly without deforming it or reducing the flow rate.

The fittings provide a quick and secure way to connect tubing.

They offer advantages such as reduced installation and disassembly time.

Approved for food-contact applications.

Polypropylene body / Nitrile EPDM gasket

Features: Pressure from 1 to 10 bar

Liquid temperature 1º to 70º

Air/gas temperature -20º to 70º

John Guest quick-connect fittings for beverage dispensing are essential components for the installation and maintenance of dispensing systems such as beer taps and water fountains. These quick-connect fittings, also known as push-fit or speed-fit couplings, allow fast and easy connections without the need for special tools. Made from food-grade polymers or nickel-plated brass, John Guest fittings offer durability and corrosion resistance, ensuring the quality and hygiene of the dispensed liquid.

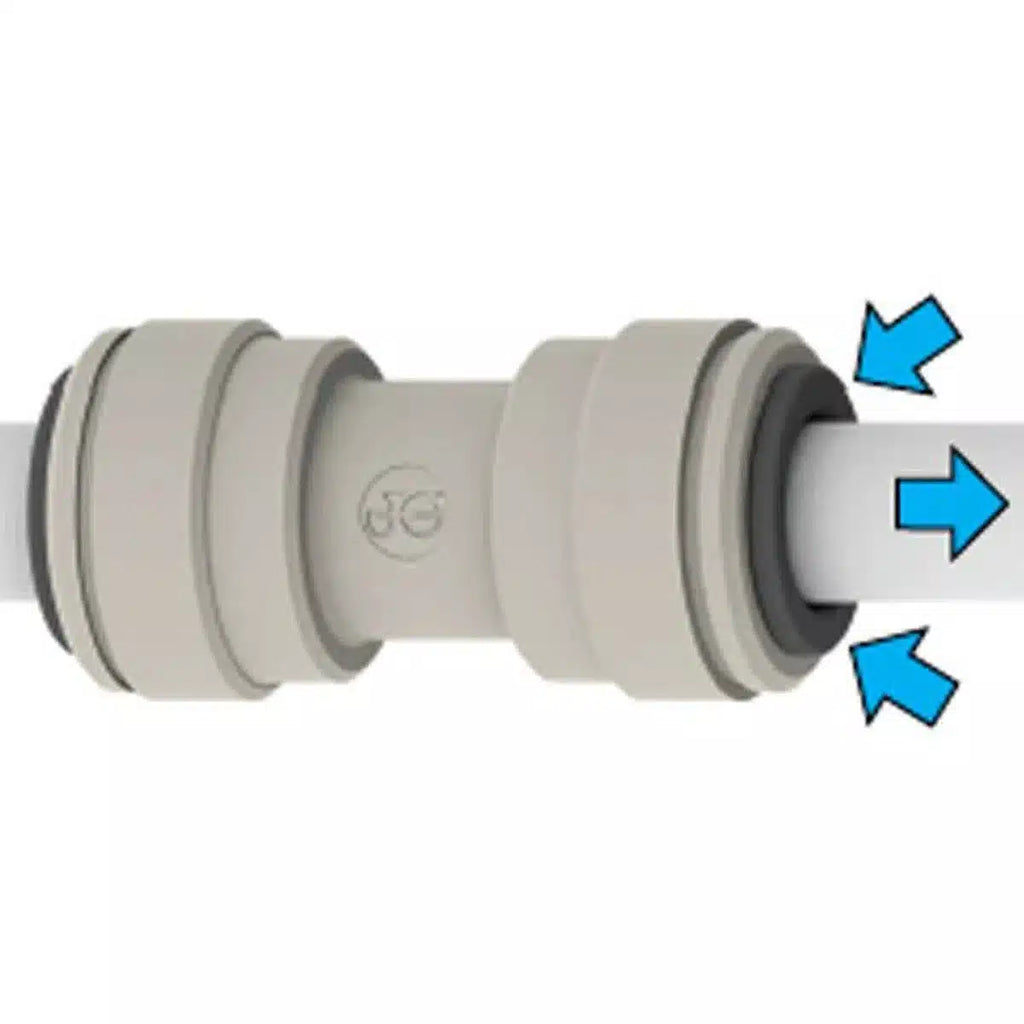

John Guest quick-connect fittings allow easy connection and disconnection of tubing simply by pushing in or pulling out the tube, making installation and maintenance of the dispensing system easier. They are designed to ensure secure, leak-free connections and can be used with additional locking clips to prevent accidental disconnections. Compatible with a wide range of tubing and materials, including polyethylene (PE), cross-linked polyethylene (PEX), polypropylene (PP), and copper tube.

You might also like

Frequently asked questions

¿Este producto es compatible con mi instalación?

Depende del tipo de conector/cabezal, roscas y diámetro de tubo. Si nos indicas tu configuración o envías una foto, te confirmamos la compatibilidad.

What measurements should I check before buying?

Tipo de rosca, diámetro interior/exterior del tubo, tipo de racor (rápido/espiga/rosca) y si es para línea de cerveza, gas o agua.

¿Incluye juntas, abrazaderas o accesorios necesarios?

The description specifies what is included. If you need additional seals or accessories, we’ll recommend compatible options.

¿De qué material está fabricado y para qué uso es recomendable?

El material (acero inoxidable, latón, etc.) está pensado para uso alimentario y de dispensación. Si vas a usarlo con otra bebida o en condiciones especiales, te orientamos.

¿Es fácil de instalar? ¿Qué herramientas necesito?

It’s usually a straightforward installation, but we recommend a clean cut on the tubing, proper tightening, and leak testing. We’ll indicate the method according to the type of connection.

¿Cómo sé si la rosca o el racor es el correcto?

La clave es identificar el estándar de rosca y el tipo de conexión de tu sistema. Si tienes dudas, envíanos una foto de la pieza actual y te ayudamos a elegir.

¿Qué hago si tengo fugas tras montarlo?

Normalmente se debe a junta gastada, medida incorrecta, tubo mal cortado o sellado insuficiente. Te ayudamos a diagnosticarlo y a solucionarlo.

¿Afecta este componente a la espuma o al caudal de servicio?

Sí, algunos componentes influyen en el flujo y estabilidad. Si tienes problemas de espuma o caudal, te orientamos para equilibrar presión, temperatura y línea.

¿Cada cuánto debo revisar o sustituir juntas y consumibles?

Depende del uso y la limpieza, pero conviene revisarlos periódicamente para evitar fugas y mantener un servicio estable e higiénico.

¿Tenéis soporte técnico y envíos internacionales?

Yes. We advise you before and after purchase and provide technical service. We also ship throughout Europe and to North, Central, and South America.
