Double Reduced Union

IB0585

$9.133,94 COP tax excl.

Import information for Colombia Duties, import taxes and handling fees depend on the destination. Calculated amounts, where applicable, will be shown at checkout; customs or the carrier may collect charges that are not included.

Shipping calculated at checkout.

Tube size 3/8'' to 3/16'' 3/8'' to 1/4'' 3/8'' to 5/16'' 5/16'' to 3/16'' 1/2'' to 3/8''

Pickup available at Install Beer S.L.

Usually ready in 4 hours

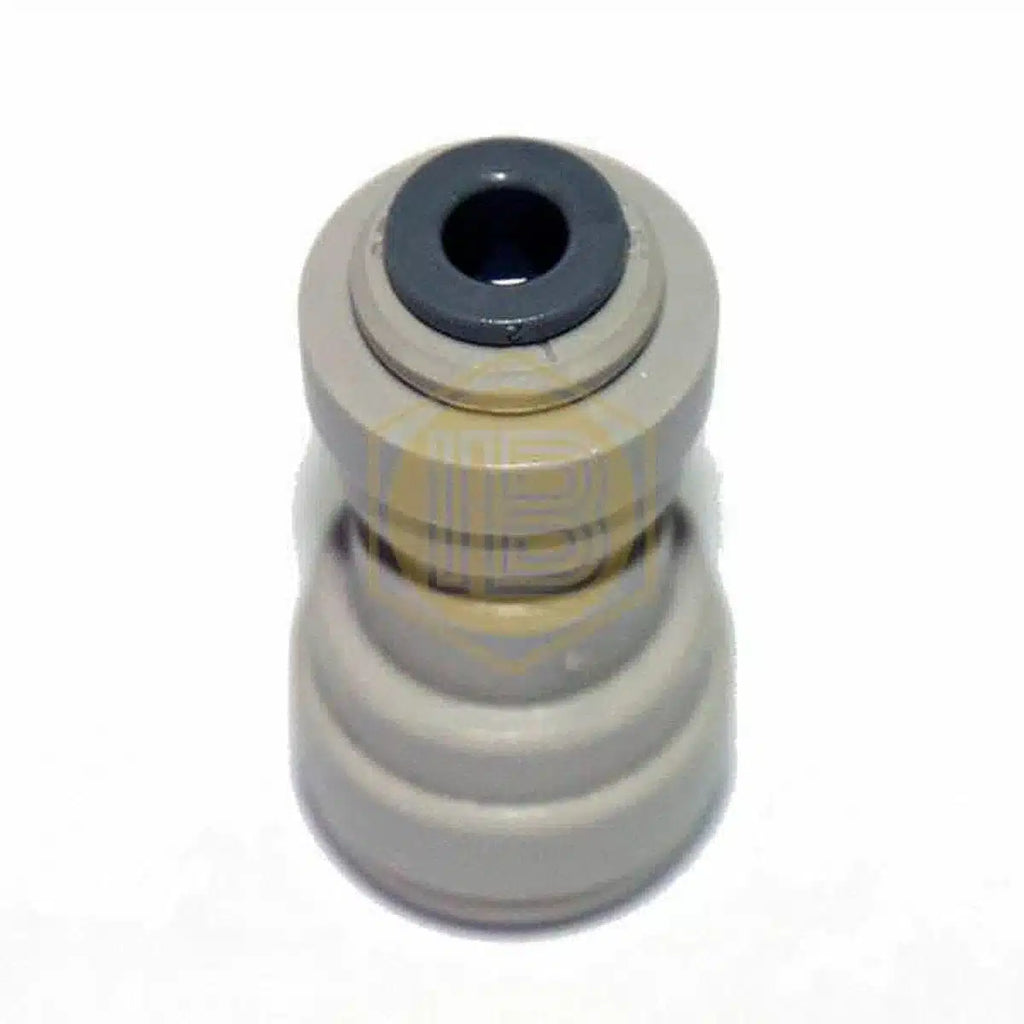

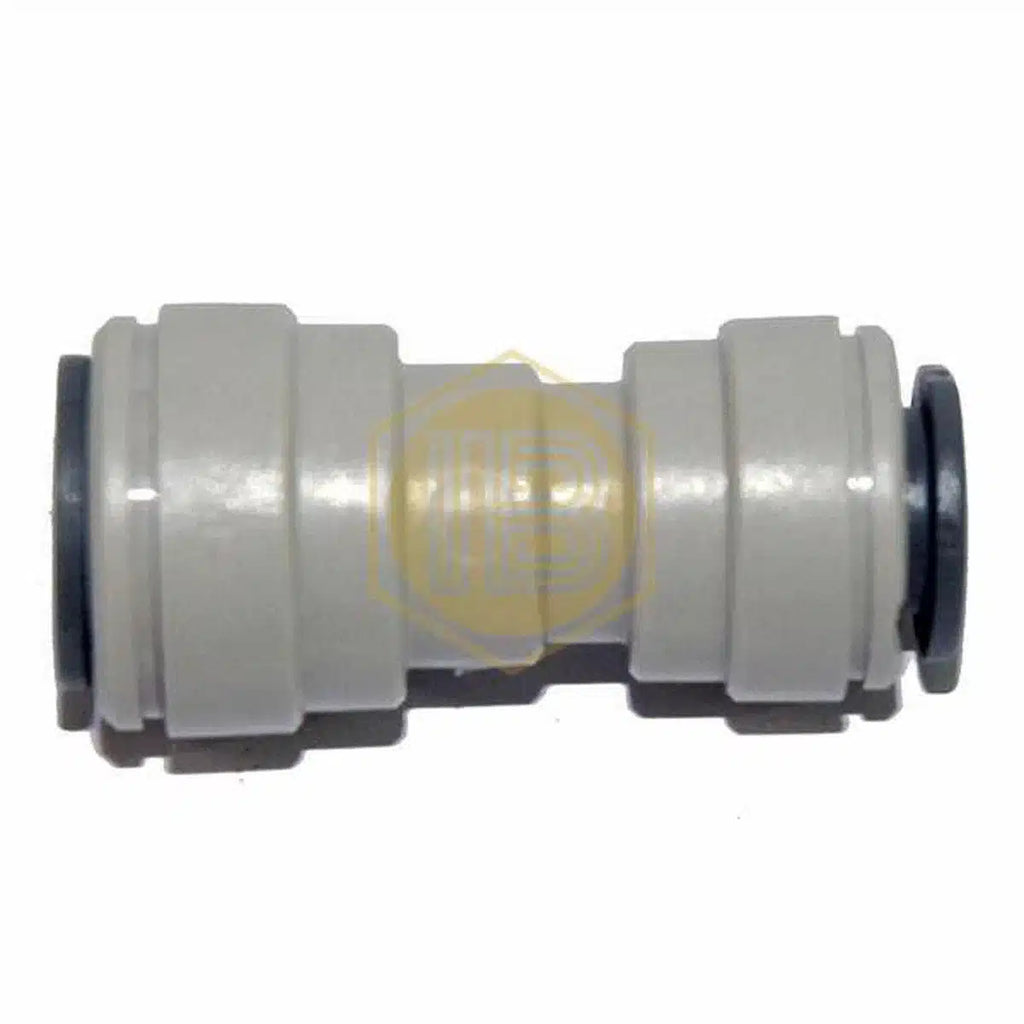

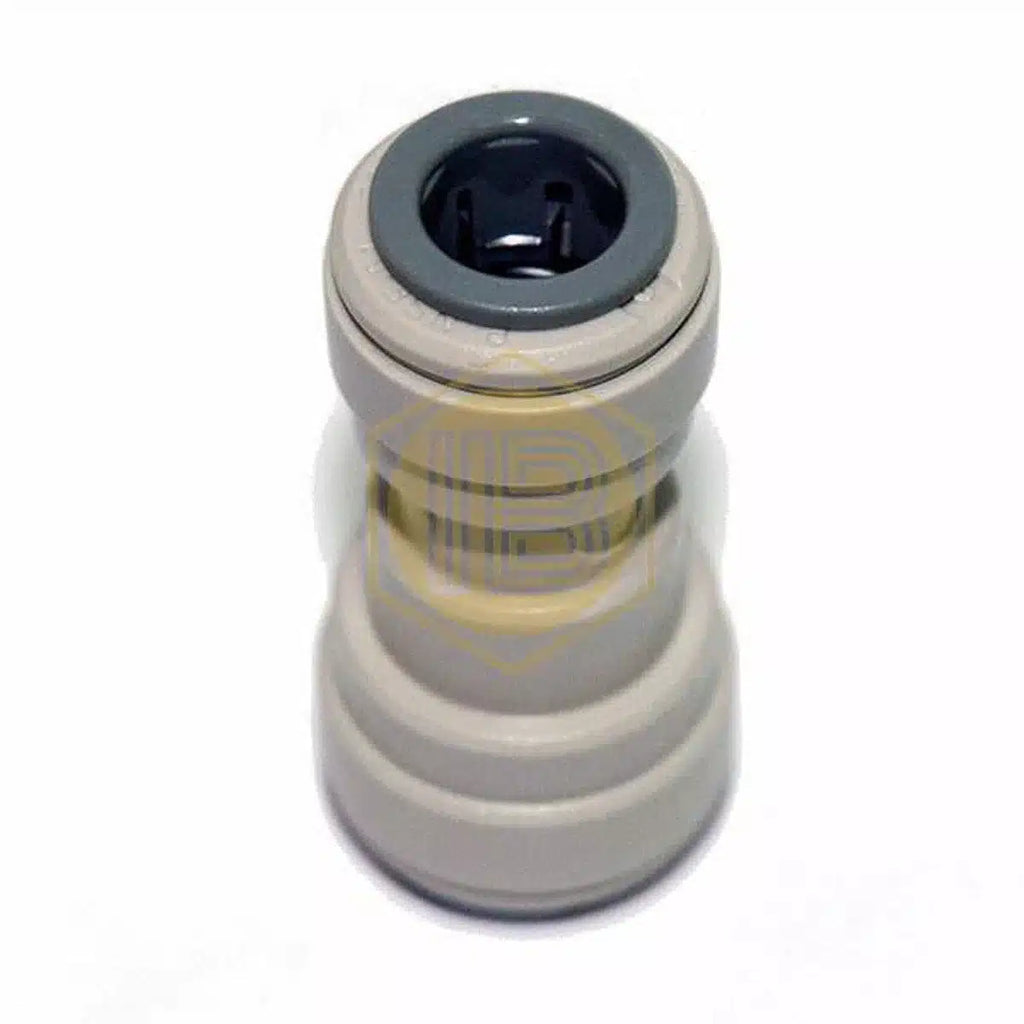

John Guest double reducing union

Straight fitting to join two tubes of different diameters in the same line using push-fit connections.

Configurations

The variants include 3/8" to 3/16", 1/4" or 5/16", 5/16" to 3/16" and 1/2" to 3/8".

When to use it

It is suitable when the run continues in a straight line but needs to change diameter.

Installation

Identify each side, cut the tubes square and insert them fully. Do not use an approximate size or force the tube.

Frequently asked questions

Is it the same as a straight union?
No; it connects different diameters.

Does it change the direction?
No, it is a straight coupling.

What should I measure?
Both outside diameters.

Can I physically reverse the direction?
The joining function does not depend on a flow direction, but each tube must go into the side for its own size.
